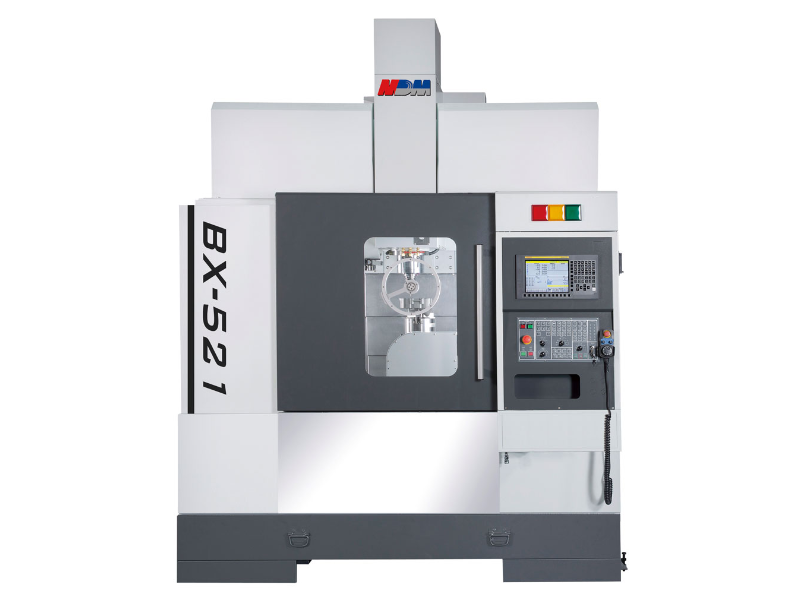

Name: BX521
Brand: MAX DRILL MACHINERY CO., LTD
SKU: NO489

Features

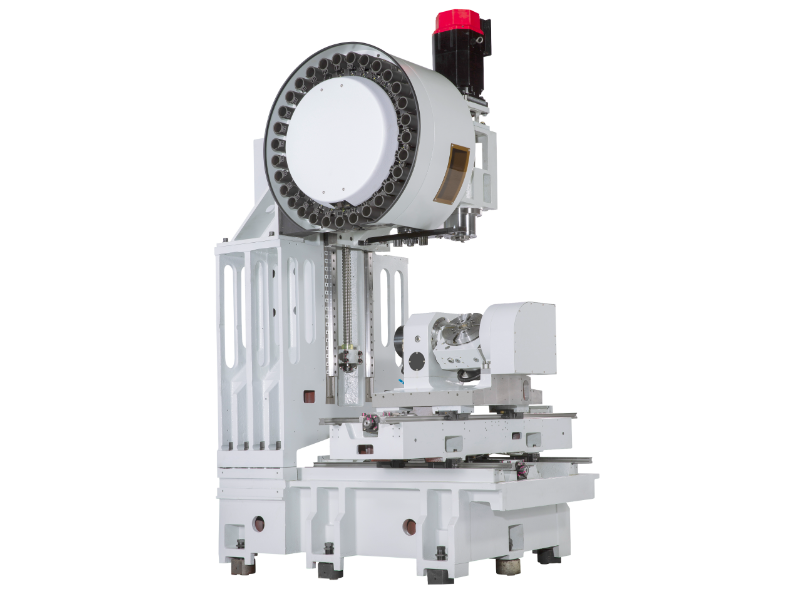

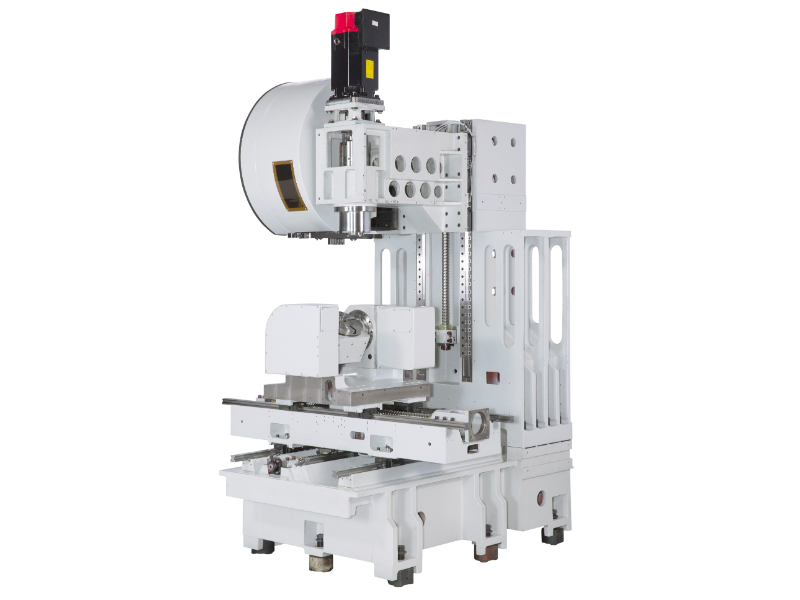

01Machine Structure
- Strengthened and widened column, X type ribs design, increase the rigidity.
- 3-linear guideway in Y axis(Base), improve the dynamic accuracy and rigidity, keep stable.
- Roller type linear guideway is standard, 4 blocks in X axis linear guideway(work table), 5 blocks in Y axis, 6 blocks in Z axis, improve the dynamic accuracy and rigidity, keep stable.
02Improve Accuracy Life
- Tool magazine sit on the column, it can eliminate the influence from the weight of the tool magazine, and keep the accuracy.
03Frequency-controlled Tool Magazine
- Inverter controls the movement of the tool magazine motor, resistive braking, prevents abnormal braking operation, ensures smooth tool change.

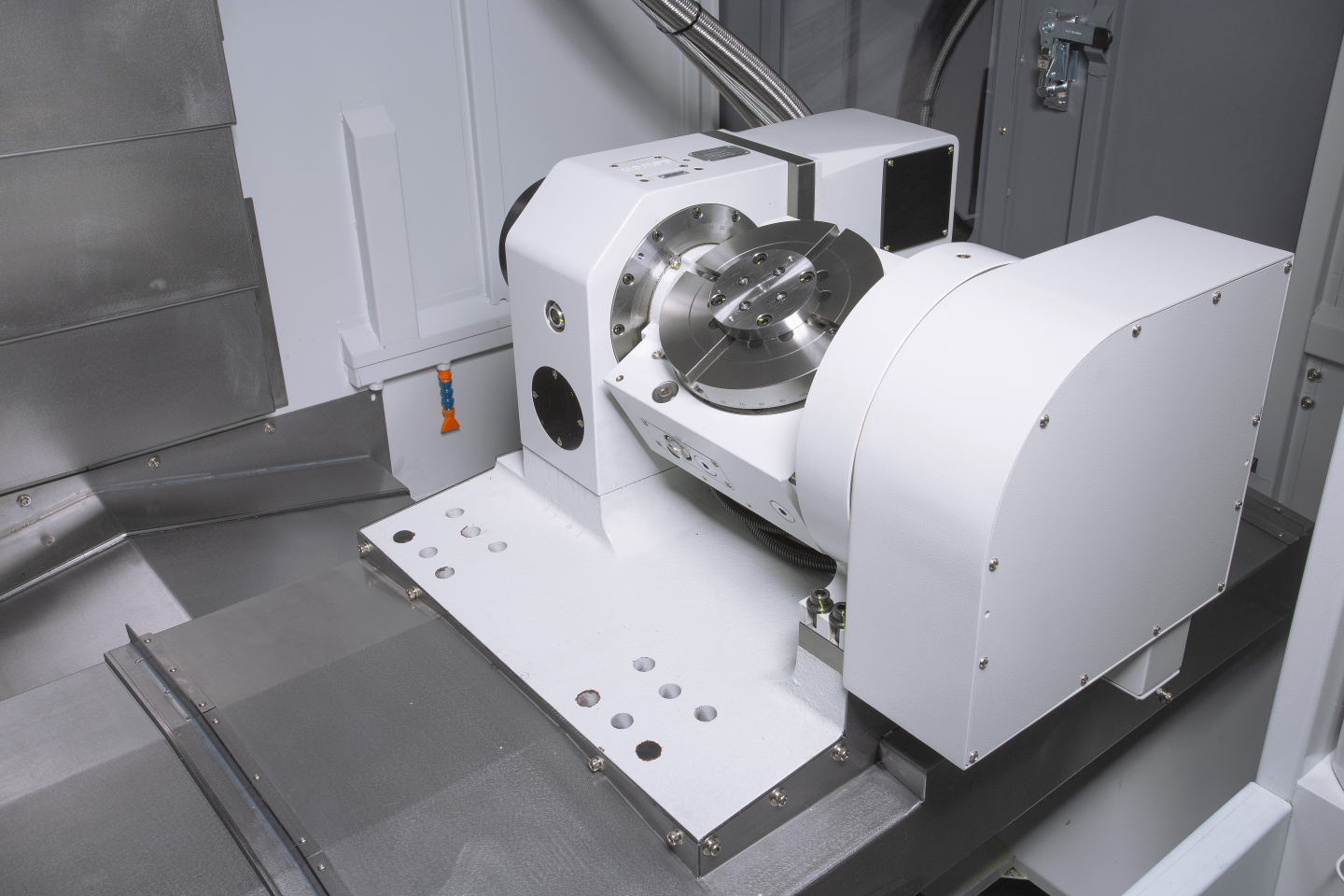

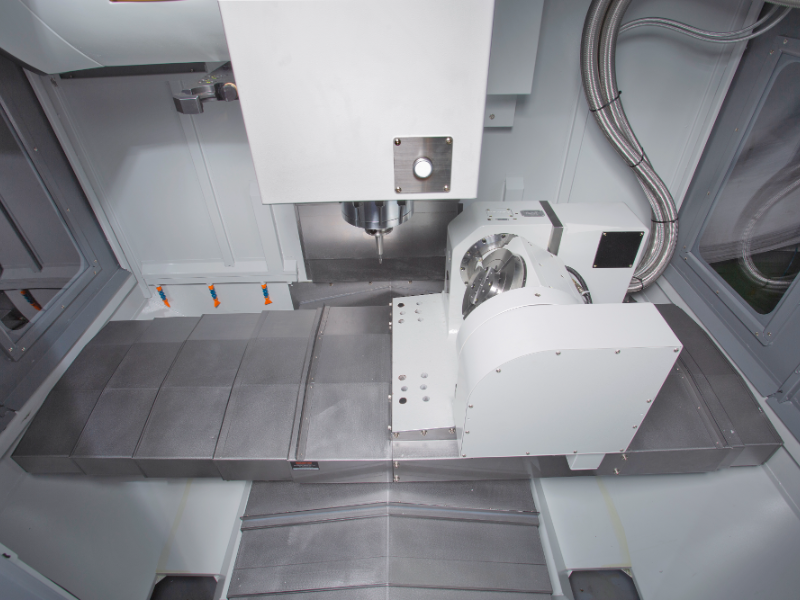

04High Accuracy, Hight Rigidity Rotary Table
- Contact surface of the dual lead worm is greater than conventional worms, this makes the rotary table excellent for heavy cutting applications.
- Greater module and higher tooth depth is more suitable for heavy cuttion.
- A/C axis encoder is standard, offering better axial synchronization and indexing accuracy.
05Automation System Module(Opt.)
- Automation system inteface, automation system can be installed in the future by module replacment.
- The robot can be placed on the side of the machine, on the upper right side of the machine or on the front of door.

MODEL		BX 521
TILTING ROTARY TABLE	Table size	mm	Ø210
	Tilting B axis	degree	150(-30°~+120°)
	Rotary C Axis	degree	360°
	Table load capacity (in horizontal)	kg	100
	Table load capacity (in vertical)	kg	70
	T slot	mm	4 x 12
	Center bore diameter	mm	Ø65
TRAVEL	X axis	mm	820
	Y axis	mm	450
	Z axis	mm	450
	Distance from spindle nose to table ( 0 Deg.)	mm	465
	Distance from spindle center to table center (90 Deg.)	mm	350
SPINDLE	Taper		#40
	Speed	RPM	12000
	Power	KW	7.5 / 11
SLIDE WAY	Type		Roller Type
	No. of slide way		2 / 3 / 2
	Size of slide way		#35 / #35 / #35
	No. of blocks		4 / 5 / 6
Feedrate	Cutting feed	mm/min.	5000
	Rapid Feedrate X/Y/Z		48 / 48 / 48
	Rapid Feedrate A/C	M/min.	20 / 30
ATC	Tool No.		24
	Tool shank		BT/CAT/DIN
	#40 Max. tool dia.x length	mm	75x250
	#40 Max. tool weight	kg	7
General	Power capacity	KVA	40
	Air Pressure	kg/cm	6
	Machine Size (Door Close)	mm	2200 x 2480 x 3090
	Machine Size (Door Open)	mm	3700 x 3445 x 3090
	Machine Size(Max. floor space with chip conveyor)	mm	4000 x 3445 x 3090
	Machine Size(Max. floor space with screw type chip conveyor)	mm	3700 x 3445 x 3090
	Machine Weight	kg	5000
